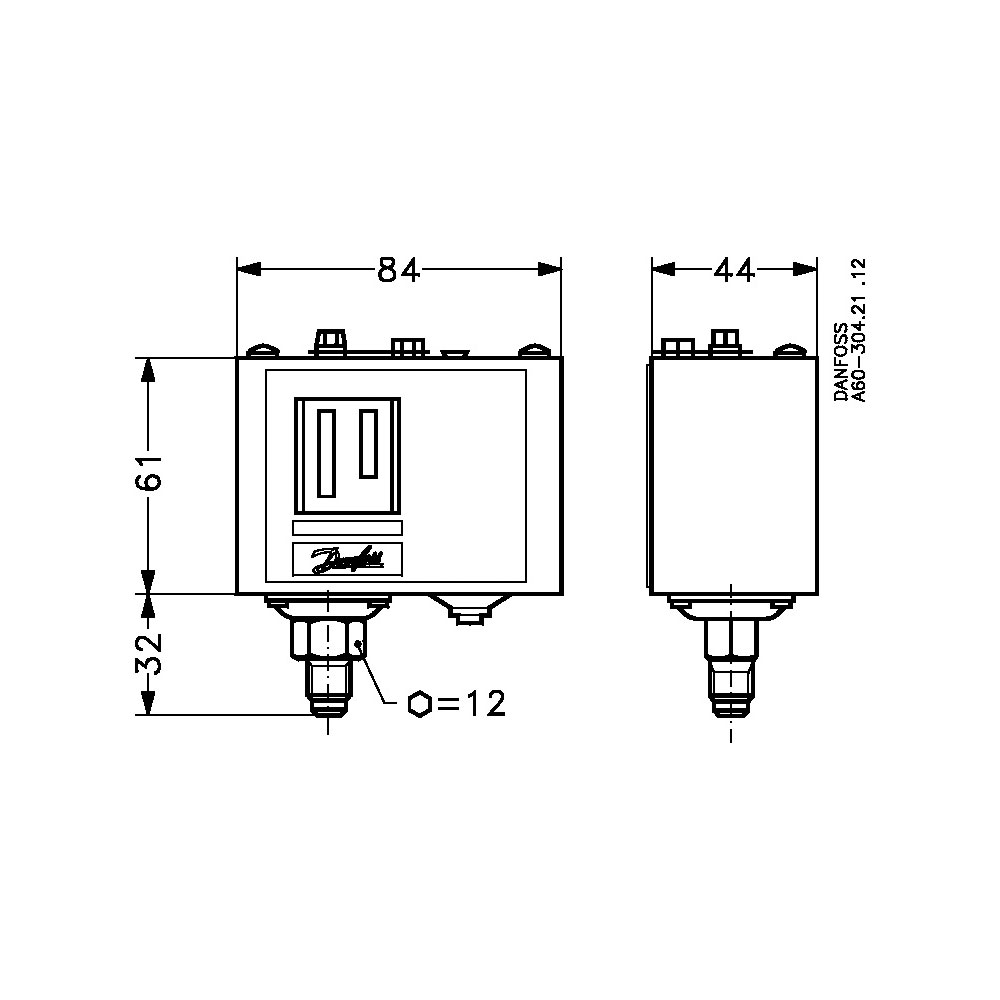

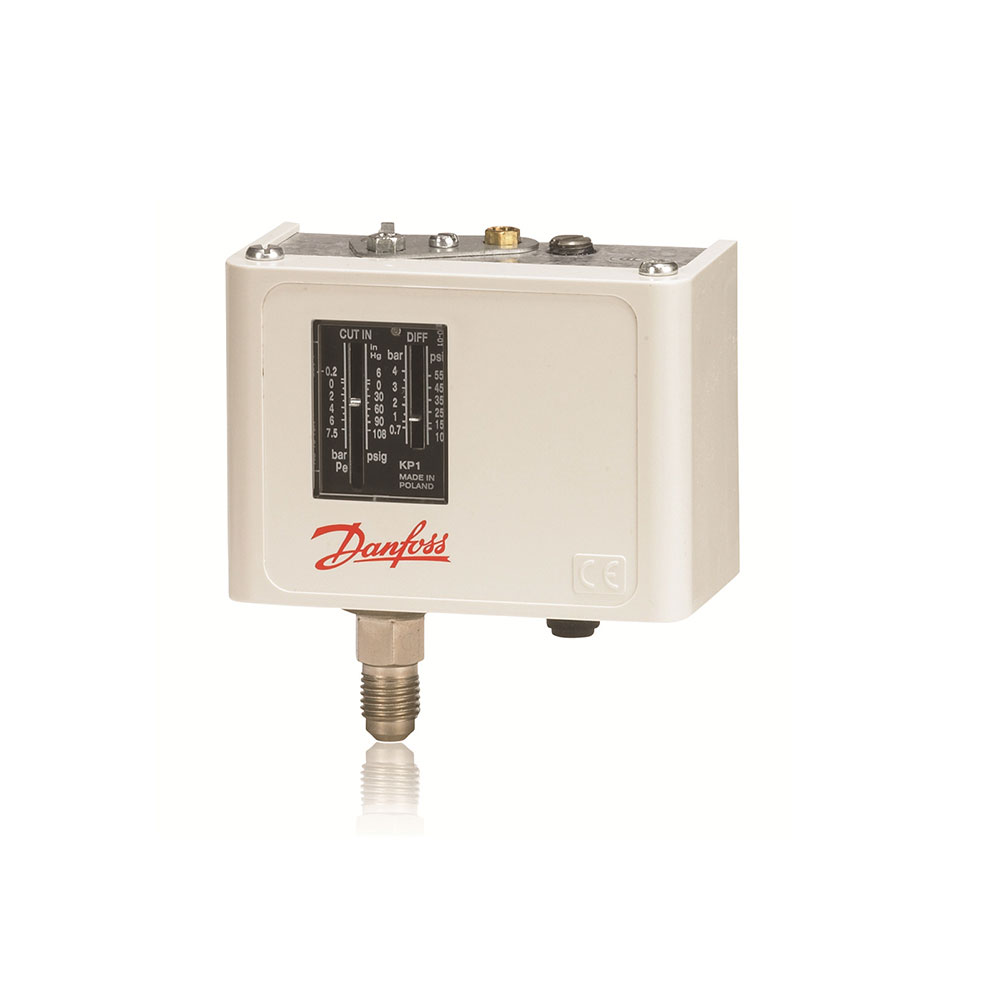

Pressure Control KP1 060-110166 1/4 inch danfoss
0,00 EGP
In Stock
Do you have a question? Ask a specialist
+201200999137 Call us
Description
Description Pressure Control KP1 060-110166 1/4 inch danfoss
| Gross weight | 0.344 Kilogram |
|---|---|
| Net weight | 0.3 Kilogram |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -13 °F |
| Application note | Not applicable for liquid line |
| Approval | BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LR LVD PED PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Contain batteries | No |
| Differential left side [bar] | 4 bar |
| Differential left side [psi] | 0.7 bar |
| Differential right side [bar] | 58 psi |
| Differential right side [psi] | 10 psi |
| EEE category | 5 small equipment (any external dimension 50 cm) |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP44 |
| Enclosure rating Nema (~) | 2 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| In scope of WEEE | Yes |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 20 bar |
| Max. test pressure [psig] | 290 psig |
Regulating range [bar] Pe: -0.20 – 7.50, Differential [bar]: 0.70 – 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Male/Female pressure: Male, IP enclosure rating: IP44, Maximum working pressure [bar]: 17.0
| Volume | 0.57 Liter |
|---|---|
| EAN | 5702422002185 |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Oil free refrigerants | R134a R513A R515B |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| PED category | IV |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 36 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113 R1234yf R1234yz R1234ze(E) R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R454C R455A R507A R513A R515B |
| Regulation range | 6 inHg – 108 psig |
| Regulation range [bar] Pe [max] | 7.5 bar |
| Regulation range [bar] Pe [min] | -0.2 bar |
| Reset function | Auto |
| SCIP dossier no. | 23785618-b379-4da7-a913-ecd40c8fae6d |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Type | KP1 |
| UK RoHS compliance | Yes |
| UL approval file name | E31024 MH27572 |
| UL approved refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B |
| UL evaluated | Yes |
